Izmag Flow Meter Sizing: Selecting Corrosion-Resistant Liners for High-Purity Chemical Injection Piping Loops
Quick Answer
For high purity chemical injection loops, liner selection is not a secondary check. Choose PTFE or PFA liners when the loop carries acids, solvents, or caustic at line sizes DN10 to DN50. Silver Instruments recommends confirming chemical concentration, temperature, pressure, conductivity, and pipe velocity before you lock in a magnetic flow meter size.
This article covers the liner materials that survive high purity chemical injection service and the sizing inputs that prevent unstable flow signals on small line sizes. Read the FAQ at the end for direct answers to common chemical dosing questions.
Why Liner Choice Changes Magnetic Flow Meter Sizing
A magnetic flow meter measures voltage across a process fluid. The liner keeps that fluid from touching the metal body. In chemical injection piping loops, the wrong liner swells, cracks, or leaks into the coil housing. That failure happens faster at DN10 to DN25 because the liner surface area is small and process heat transfers quickly.
So sizing should start with liner compatibility before you optimize for velocity or pressure drop. We have seen customer sites where a DN15 meter with EPDM liner works for water but fails within months on sodium hypochlorite injection. The meter body becomes a maintenance problem. The real cost is injection skid downtime.
Liner Materials We Specify for High Purity Chemical Service
For most high purity chemical injection loops, Silver Instruments specifies these liners.
- PTFE liner for strong acids, sodium hypochlorite, and solvents up to 150 °C
- PFA liner for high purity solvents and aggressive mixtures up to 180 °C
- ETFE liner for medium chemical exposure with better vacuum resistance up to 120 °C
- EPDM or hard rubber only for non aggressive aqueous streams below 80 °C
The list is short because chemical injection usually involves aggressive fluids. A plastic lined flow tube with titanium or Hastelloy C electrodes is often the safe first choice. Silver Instruments can supply tantalum or platinum electrodes when users report corrosion on standard 316L electrodes.
Key Sizing Inputs for Chemical Injection Loops
Engineers should send actual process values not just line size. These values include chemical name and concentration, temperature in Celsius, operating pressure in bar, minimum and maximum flow rate in kg/h, pipe size DN, and required output. We also need signal type. Most customers in Southeast Asia request 4-20 mA HART for integration with local PLC systems. Some sites in the Middle East add ATEX Zone 1 approval for solvent injection packages.
In practice a DN15 mag meter sized for 10 to 100 L/h may look correct on a datasheet but may be too large. The flow velocity might drop below 0.3 m/s. That leads to unstable readings. Silver Instruments often recommends reducing the meter size to DN10 or accepting a shorter turndown if the fluid has low conductivity.
One more point. Magnetic flow meters require a minimum conductivity. Most chemical injection mixtures are above 20 µS/cm. If the loop runs deionized water or ultrapure methanol at less than 5 µS/cm
_600x400.jpg)

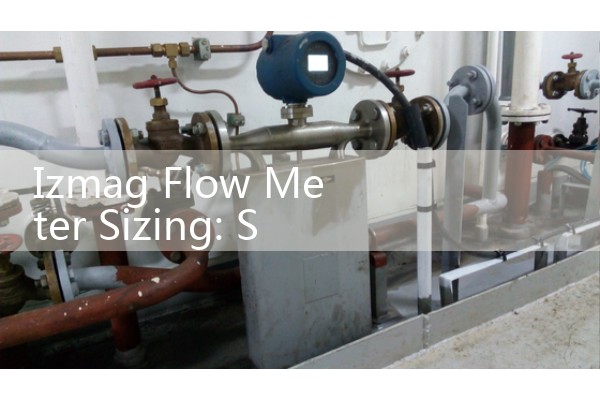

How Silver Instruments Handles Izmag Flow Meter Sizing
The term Izmag flow meter sizing often appears when engineers compare electromagnetic flow meter brands and liner options. Silver Instruments uses the same sizing discipline. We ask for pipe size, fluid, temperature, pressure, and flow range. We check line velocity against the selected diameter. We confirm the liner and electrode materials. Then we quote a complete meter body with transmitter, not just a bare tube.
A recent case from Vietnam involved a DN20 injection line for 98 percent sulfuric acid. The original magnetic flow meter used a PTFE liner but the customer still reported signal loss. The real issue was low flow velocity below 0.25 m/s during dosing pauses. We replaced the DN20 meter with a DN15 PFA lined meter and set the low flow cutoff correctly. The reading stabilized.
Common Silver Instruments Models for Chemical Injection
For small chemical lines we often recommend the Silver Instruments SI3000 series electromagnetic flow meter. It supports DN10 to DN300, has PTFE or PFA liner options, 316L, Hastelloy C, tantalum, or titanium electrodes, and outputs 4-20 mA HART. Accuracy is 0.5 percent of reading for standard installation. For hazardous area injection skids, we offer an ATEX approved version.
If the chemical has very low conductivity or the customer needs direct mass flow, we move to the Silver Instruments Coriolis mass flow meter. The CMF series handles flow ranges from 0.5 kg/h to 30,000 kg/h and provides mass flow, density, and temperature output.
FAQ: Five Questions Engineers Ask About Chemical Injection Mag Meters
What liner should I choose for sodium hypochlorite injection?
Use PTFE or PFA liner with titanium electrodes. Do not use EPDM or hard rubber for hypochlorite at high concentration.
Can I use a magnetic flow meter on a DN15 chemical injection loop?
Yes. DN15 works if the flow velocity stays between 0.3 and 10 m/s during normal dosing. If the minimum flow drops below 0.3 m/s, you need a smaller meter or a Coriolis mass flow meter.
How do I size a flow meter for acid or caustic injection?
Send the chemical name, concentration, temperature, pressure, pipe size, and min and max flow rate. Silver Instruments checks velocity, liner compatibility, and electrode material before quoting.
What is the minimum conductivity for a mag meter on chemical injection?
Most mag meters need at least 5 µS/cm. Some applications need 20 µS/cm when accuracy is tight. Ultrapure water and some solvents need a Coriolis mass flow meter instead.
How fast can I get a quote from Silver Instruments?
For standard DN10 to DN50 chemical injection meters, we can respond within 24 hours. Provide your process values and the required certifications.
For a quick sizing check, send your chemical name, concentration, pressure in bar, temperature in Celsius, pipe size DN, and flow range to Silver Automation Instruments. Tel: +86-25-68650347. WhatsApp: +86-25-52155837. WeChat: +86 15365082610.
