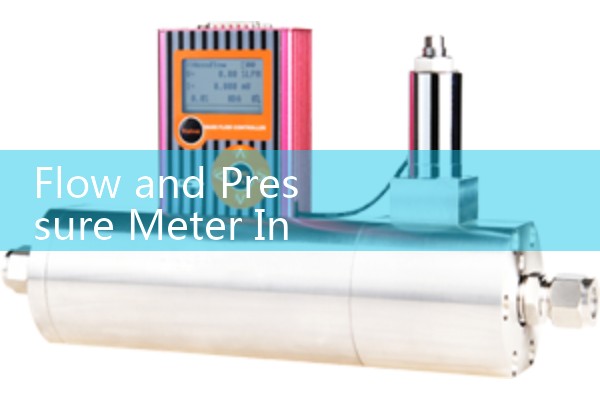

Flow and Pressure Meter Integration: Combining Dual Sensors for Hydraulic Optimization
For hydraulic optimization, flow and pressure meter integration gives two signals that solve pump control faster than a single flow reading. Dual sensors can detect cavitation, filter clogging, and internal leakage on hydraulic lines. Silver Instruments recommends an oval gear flow meter plus a pressure transmitter for oil circuits, and an electromagnetic flow meter plus a pressure transmitter for water based fluids.
Why Combine Flow and Pressure in Hydraulic Systems
A flow meter alone shows volume moving through a pipe. It does not show the energy state of the fluid. A pressure transmitter alone shows force but not actual flow. In a hydraulic power unit, a stable flow reading of 180 L/min can hide a vacuum of 0.2 bar at the pump inlet. A vacuum at the pump inlet leads to cavitation. With dual sensor data, a PLC can separate a pump issue from a clogged suction strainer. A customer in Vietnam learned this on a press line. The flow meter held steady. The pressure transmitter showed a slow drop from 0.5 bar to 0.15 bar. The problem was a blocked return filter, not the pump. The dual sensor setup saved a full pump rebuild.
Sensor Pairing by Fluid and Pipe Size
For hydraulic oil from ISO VG 32 to ISO VG 68, size an oval gear flow meter. The Silver OGF series covers DN15 to DN80 and handles viscosity from 2 to 500 cP. Pair it with a Silver AP310 pressure transmitter in a 0 to 350 bar or 0 to 600 bar range. For water glycol circuits with conductivity above 20 µS/cm, use a Silver EMF series electromagnetic flow meter. The EMF series is full bore and adds no pressure drop. For test benches that demand mass flow accuracy better than 0.2 percent, a Silver CMF Coriolis meter plus a pressure transmitter is the correct package. The Coriolis output gives mass flow in kg/h and fluid density. In all cases, match the meter body to the actual pipe DN. Do not install a DN50 meter on a DN25 line with reducers. Velocity profile changes and accuracy suffers.
Installation Details That Matter
Many engineers skip the mounting details. Poor readings come from that mistake. For oval gear meters, allow 5D of straight pipe upstream and 2D downstream when viscosity is above 50 cP. For electromagnetic flow meters, allow 10D upstream and 5D downstream when a control valve sits near the meter. Mount the pressure transmitter tap 2 to 5 pipe diameters downstream of the flow meter. Do not tap directly on the meter body. Flow turbulence at the meter body can shift pressure readings by 0.3 bar or more. Use a block valve and a siphon tube when fluid temperature exceeds 80 °C. For hydraulic systems, select stainless steel 316L wetted parts and an oil filled diaphragm. Keep the sensor wiring away from high voltage motor cables. A 4-20 mA loop is more forgiving than a millivolt signal. Add a PT100 temperature sensor when hydraulic fluid operates above 60 °C and the PLC needs temperature compensation. For offshore and gas terminal locations, request ATEX Zone 1 certification on both the flow meter and pressure transmitter.
Calibration and Output Configuration
Set the flow meter 4 mA at 0 L/min and 20 mA at the maximum expected flow. For a DN25 hydraulic oil circuit, a typical span is 0 to 200 L/min. Set the pressure transmitter 4 mA at 0 bar and 20 mA at 350 bar. Both devices can output 4-20 mA HART. Wire both loops to one PLC analog input card. Most PLC programs check a simple condition. If pressure changes m
Common Customer Scenarios
In practice, customers see fast payback. A paint manufacturer in Southeast Asia installed a Silver OGF-25 oval gear flow meter and a Silver AP310 pressure transmitter on a disperser hydraulic line. The pressure drop across the return filter rose 1.1 bar over three weeks. The operator replaced the filter before solids reached the servo valve. Downtime dropped 18 percent. A desalination plant in Oman uses a Silver EMF electromagnetic flow meter plus a pressure transmitter on high pressure brine discharge. The dual sensor setup protects the high pressure pump and confirms membrane feed flow. A marine service company in Nigeria uses a DN40 oval gear meter and a 0 to 350 bar transmitter on hydraulic winch lines. The system detects leakage in deck machinery before the leak reaches 2 L/min. These are not special projects. They are standard hydraulic circuits with better data.
Request a Paired Package
Send us your pressure range in bar, temperature in °C, pipe size in DN, and flow range in L/min or m³/h. Silver Instruments will recommend a flow and pressure meter integration package with calibration certificates and a wiring diagram. We serve industrial end users and distributors in Southeast Asia, Oceania, Latin America, Africa, and the Middle East. Contact Silver Automation Instruments by Tel at +86-25-68650347, by Whatsapp at +86-25-52155837, or by WeChat at +86 15365082610. We answer technical questions in English and Chinese.
FAQ
Which flow meter type is best for hydraulic oil?
For hydraulic oil at 2 to 500 cP, an oval gear flow meter is the usual first choice. For water glycol with conductivity above 20 µS/cm, use an electromagnetic flow meter. For synthetic fluids with low conductivity, a Coriolis mass flow meter gives stable mass flow and density data.
Can the pressure transmitter be mounted close to the flow meter?
Yes. Mount the pressure tap 2 to 5 pipe diameters downstream of the flow meter. Use a block valve and a siphon tube if the fluid temperature is above 80 °C. For DN50 and larger lines, do not mount the transmitter directly on the meter body. Turbulence there can shift the reading.
What signal output should I request?
Request 4-20 mA HART for both devices. A HART signal gives you two analog loops or one multi-drop loop. Many customers add Modbus RTU to pull flow total, pressure, and diagnostic codes into a PLC. For simple pump control, two 4-20 mA loops are enough.
How do I select the right pressure range?
Take the maximum pump deadhead pressure and add 20 percent margin. If the pump deadhead is 280 bar, specify a 0 to 350 bar transmitter. Do not select a 0 to 600 bar range just because it covers more. Accuracy at 150 bar becomes less useful with an oversized range.
Can Silver Instruments supply a preconfigured dual sensor package?
Yes. We provide the flow meter, pressure transmitter, calibration reports, and a wiring diagram. Send us your pressure in bar, temperature in °C, pipe size in DN, and flow range. We will recommend a complete package with the correct process connections.
