4 Inch Flow Meter: Sizing Four-Inch Steam and Wastewater Valves
Quick Answer
A 4-inch (DN100) flow meter handles typical flow ranges from 20 to 400 m3/h for water and 300 to 3,000 kg/h for saturated steam at 10 bar. For wastewater with solids, choose a full-bore electromagnetic meter with PTFE liner. For steam, pick a vortex meter with integrated temperature and pressure compensation. Send us your pipe size, medium, pressure in bar, and temperature in °C to get a specific model recommendation.
Why Pipe Size Alone Is Not Enough
Many first-time buyers search for a "4 inch flow meter" and assume the pipe diameter settles the matter. It does not. A DN100 pipe carries raw sewage in a treatment plant in Malaysia one day and superheated steam at a refinery in Oman the next. The meter internals differ completely. We learned this the hard way when a customer in Surabaya ordered a turbine meter for his 4-inch steam line and the bearing seized within two weeks. Wrong choice. He swapped to a vortex meter and the problem went away.
So before we talk about meters, we need to talk about what flows inside the pipe. Steam and wastewater sit at opposite ends of the spectrum. One is hot, dry, and compressible. The other is dirty, conductive, and often gravity-fed. The meter selection logic could not be more different.
Steam Flow Measurement on DN100 Lines
Saturated steam at 8 to 12 bar is common in Southeast Asian palm oil mills, textile dyeing plants, and food processing factories. A 4-inch steam header typically delivers between 500 and 3,000 kg/h depending on boiler capacity. The flow velocity must stay between 25 and 60 m/s. Anything slower and the meter loses accuracy. Anything faster erodes the bluff body inside a vortex meter.
We recommend a vortex flow meter with a built-in PT100 temperature sensor and a 4-20 mA pressure transmitter. Silver Instruments supplies the SIVB-series vortex flow meter with an inline design that fits directly between two DN100 flanges. The meter body comes in 316L stainless steel as standard. The sensor sits in a weld-free housing rated to 350°C. Because steam temperature swings matter, every meter includes density compensation logic inside the converter. Output is 4-20 mA HART with Modbus RTU as an option. We have shipped these to palm oil mills in Sumatra, breweries in Vietnam, and a corrugated cardboard plant in Nairobi.
Here is the thing. Steam meters run hot. The ambient temperature around the meter electronics matters. If your installation sits above a boiler room with 60°C ambient air, tell us before ordering. We will quote the remote-mounted converter version so the electronics do not cook inside the housing. We have seen this exact failure on a customer site in Dhaka. The meter still worked but the LCD display went black after two months.
Contact Silver Automation Instruments for steam meter sizing. Send us your steam pressure in bar, temperature in °C, and the expected minimum and maximum flow in kg/h. Reach us by Tel at +86-135-1213-1526 or via Whatsapp at 86-135-12131526.
Wastewater Flow Measurement on 4-Inch Pipes
Wastewater in a 4-inch line usually flows at low pressure, often only 0.2 to 1 bar of head pressure from an upstream tank or clarifier. The liquid may contain sludge, sand, rags, or fibrous material. A meter with moving parts or any kind of flow restriction will clog. That rules out turbine meters, oval gear meters, and orifice plates immediately.

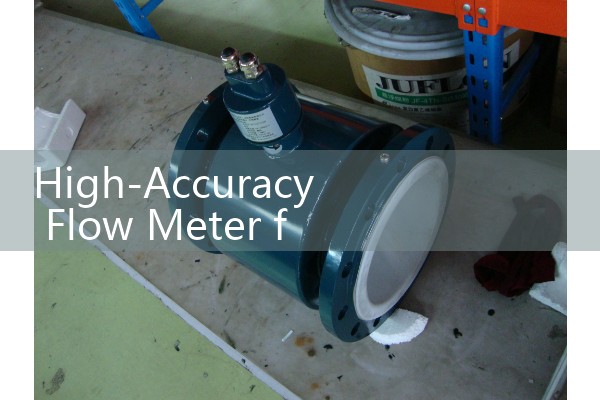

The standard choice for 4-inch wastewater is a full-bore electromagnetic flow meter. No obstructions in the pipe. No pressure drop. The liner material handles the chemical and abrasive conditions. For municipal wastewater with pH between 6 and 9, we use hard rubber liners. For industrial effluent with solvents or acids, PTFE liners work better. The electrodes must be Hastelloy C or titanium if the water contains salt or chlorides. A desalination plant in Egypt ran 316L electrodes in their brine reject line and the electrodes pitted within six months. They switched to titanium and the problem stopped. These details matter.
Silver Instruments supplies the SIEM-series electromagnetic flow meter for DN100 wastewater applications. The meter requires a straight run of 5 diameters upstream and 2 diameters downstream. If your site has a 90-degree elbow right before the meter, the flow profile will be skewed and the accuracy drops from ±0.5% to something closer to ±2%. In practice, most engineers skip this check during installation and then wonder why the readings drift. We always ask for a photo of the pipe run before finalizing the meter selection.
For partially full pipes, a standard magmeter will not work because the electrodes lose contact with the liquid. We had a customer in Guatemala whose 4-inch drain line ran only 40% full during dry season. His magmeter read zero every morning. He needed a model with electrode detection at the 10% pipe fill level, which is a special order item. If your 4-inch wastewater line runs partially full, mention this in your inquiry.
Need a wastewater flow meter quote? Share your pipe material, liquid conductivity in uS/
The DN100 Sizing Checklist
A 4-inch flow meter matches multiple technologies (See Table 1). Each technology has a sweet spot. Picking the wrong one wastes money and creates maintenance headaches. We see this all the time when customers buy on price alone and ignore the process conditions. A cheap turbine meter on a wastewater line will last maybe three months before the bearings seize. The repair cost plus downtime exceeds the price difference of buying the correct magmeter from day one.
Table 1: 4-Inch Flow Meter Selection by Application
Steam (saturated, up to 250°C): Vortex flow meter. Range 30 to 3,000 kg/h. Accuracy ±1.0% of reading. Requires 15D straight run upstream. Integrated temperature and pressure sensors recommended.
Steam (superheated, above 250°C): Vortex flow meter with remote electronics. Same range as saturated but the converter must be mounted away from heat. Silver Instruments SIVB-R series handles up to 350°C process temperature.
Wastewater (full pipe, conductive above 5 uS/cm): Electromagnetic flow meter. Full-bore DN100 design. Liner options of hard rubber or PTFE. Range 10 to 500 m3/h. Accuracy ±0.5%.
Wastewater (partially full pipe): Electromagnetic flow meter with electrode fill-level detection. Special order. Requires field survey of pipe slope and fill levels across seasons.
Sludge or high-solids wastewater: Electromagnetic flow meter with PTFE liner and ultrasonic electrode cleaning option. Silver Instruments can supply a built-in cleaning circuit triggered by the converter.
Clean water (DN100, no solids): Ultrasonic clamp-on or inline electromagnetic. Ultrasonic avoids cutting the pipe. Accuracy ±1.0%. Good for temporary measurement or retrofit on existing steel or PE pipes.
Installation Reality on 4-Inch Lines
The data sheet numbers assume perfect conditions. Real installations rarely have perfect conditions. A food factory in Thailand mounted a vortex meter on a 4-inch steam pipe right after a partially open gate valve. The valve created swirling flow. The meter over-read by 22%. They sent the meter back thinking it was faulty. We tested it on our calibration rig and it was dead accurate. The problem was the installation. They moved the meter 12 pipe diameters downstream and the issue disappeared.
For wastewater, the biggest installation mistake is mounting the meter at the highest point of a pipe run. Air bubbles collect on the electrodes. The meter reads zero or jumps erratically. Place the meter at a low point where the pipe always runs full. If the pipe discharges into an open tank, install the meter before the drop-off or in a U-section that stays flooded. A customer in Nairobi learned this when his magmeter kept losing signal every afternoon. The tank level dropped, the pipe went slack, and air entered the line. He added a downstream isolation valve and held backpressure. The meter stabilized.
Weld-in meters require welding rings onto the pipe. Electro-polish the weld seams to remove splatter that disturbs flow. Silver Instruments provides the weld rings and gaskets with every inline meter. If your site uses PE or PVC pipes, we supply wafer-style meters that sandwich between flanges without welding. Tell us your pipe schedule and material when requesting a quote.
Whatsapp us your installation photos and a simple sketch showing the upstream and downstream fittings. Our application engineers will confirm the straight run requirements for your specific meter model. Contact Silver Automation Instruments via Tel: +86-135-1213-1526 or WeChat: +86 13512131526.
Pressure Drop and Pumping Cost
Vortex meters create a small permanent pressure loss. On a 4-inch steam line carrying 2,000 kg/h, the pressure drop across a vortex meter is approximately 0.15 bar. This is small enough that most plants ignore it. But if your steam header operates at exactly 6 bar and your process needs 5.8 bar minimum, that 0.15 bar matters. We have had customers in textile mills who run on marginal boiler pressure and every bar counts. For those plants, an orifice plate meter drops around 0.5 bar at similar flows, which is worse. Vortex is the lower-loss option among the common steam meter types.
Magmeters on wastewater create zero additional pressure drop. The bore matches the pipe exactly. This is why operators like them for gravity-fed lines where every millimeter of head matters. If a 4-inch drain line runs at only 0.5 bar, you cannot afford to drop any pressure through a flow restriction. The magmeter solves this completely.
FAQ
What is the typical flow range of a 4-inch vortex flow meter for steam?
A DN100 vortex meter measures 30 to 3,000 kg/h for saturated steam at 10 bar with good accuracy. The minimum measurable flow depends on density, so lower pressure steam shifts the range downward. Contact Silver Instruments with your specific steam conditions for a sizing calculation.
Can I use the same 4-inch meter for steam and wastewater?
No. Steam meters use vortex o
