Compressed Air Flow Meter Sizing: Direct Mass Flow Testing for Efficiency
Quick Answer: Compressed air flow meter sizing should start with direct mass flow testing. A thermal mass flow meter reads kg/h or scfm directly and avoids separate pressure and temperature compensation. Give us your pressure, temperature, pipe size, and flow range and we will return a specific model recommendation.
Why Direct Mass Flow Testing Matters for Compressed Air Systems
Most compressed air audits measure velocity or differential pressure and then calculate flow. That approach adds error because air density changes with pressure and temperature. Direct mass flow testing skips the density correction. The sensor measures the cooling effect of air molecules on a heated element. That cooling effect tracks mass flow directly.
We have seen this on customer sites many times. A plastic bottle plant in Vietnam had a 10 percent error in its existing vortex meter because the pressure transmitter was not installed at the correct position. After a direct mass flow test with a thermal meter, the actual air consumption was 14 percent lower than the plant operator believed. That changed the compressor scheduling and cut one compressor run time by 3 hours per day.
Sizing Data You Need Before Contacting a Supplier
You need four values for compressed air flow meter sizing. Pipe size in DN, operating pressure in bar, temperature in degrees C, and the minimum and maximum flow range in kg/h or scfm. Do not use average flow only. Many engineers skip the minimum flow value and then the meter loses accuracy at low loads. We ask for both minimum and maximum because turndown ratio matters.
For example, a food packaging line in Australia ran at 420 kg/h during full production but only 70 kg/h during cleaning shifts. A meter sized for 500 kg/h would read poorly at 70 kg/h if it was an orifice plate. A thermal mass flow meter with a 100:1 turndown handled both values.
Direct Mass Flow Test Procedure on Site
The test procedure is simple. Insert the probe into the compressed air line through a ball valve. Align the flow arrow with the air direction. Let the sensor temperature stabilize for 10 minutes. Record the kg/h or scfm value at full load, half load, and no load. Compare those numbers with the compressor output rating.
At a water treatment plant in Peru, the no load reading was 38 kg/h. That indicated a leak in the distribution header. The maintenance crew found a cracked fitting on a DN25 branch line. Fixing that leak saved about 1,800 AUD per year at the local power rate. Direct mass flow testing shows these hidden losses quickly.
Matching Flow Meter Types to Compressed Air Applications
Thermal mass flow meters fit most compressed air systems from DN15 to DN100. They are insertion or inline types. Insertion probes work well in larger pipes DN80 and above. Inline thermal meters cover smaller lines DN15 to DN50. Vortex flow meters also work but require pressure and temperature compensation for mass flow. Coriolis mass flow meters measure compressed air m

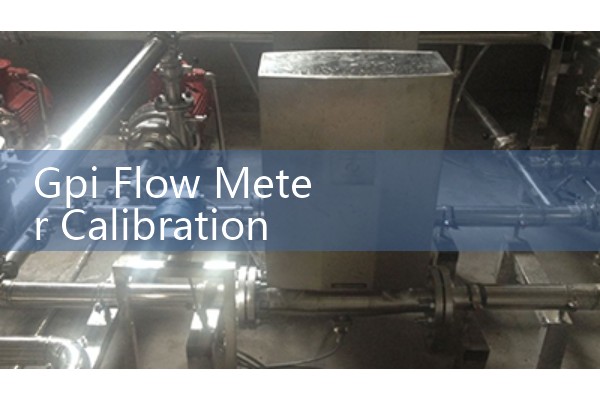

_600x400.jpg)
We recommend thermal mass flow meters for compressed air because the installation cost stays low. A typical insertion thermal meter for a DN80 pipe costs less than a Coriolis meter of the same size. One customer in Saudi Arabia needed 12 points across a factory air network. Thermal insertion meters were installed in one day without cutting the pipes.
Typical Compressed Air Flow Rates and Pipe Sizes
Sizing follows the pipe diameter and the expected flow. A DN25 line at 7 bar often handles 100 to 400 kg/h. A DN50 line can pass 500 to 2,000 kg/h. A DN80 line often runs 1,500 to 5,000 kg/h. These values shift with pressure and temperature. Direct mass flow meters read the actual mass flow so you do not need a separate density calculation.
We use these numbers as a starting point only. A textile mill in Bangladesh reported 900 kg/h on a DN40 header. The actual reading was 1,150 kg/h during peak shifts. The difference occurred because the old calculation used an assumed temperature of 25 degrees C but the air after the dryer was 43 degrees C.
Request a Quote with Exact Operating Data
To get a price from Silver Automation Instruments, send us your pressure in bar, temperature in degrees C, pipe size in DN, and flow range in kg/h. Also tell us the pipe material and whether the installation area has a hazardous area classification. We will respond with a model number, accuracy spec, and price in USD or AUD.
You can reach us by phone at +86-25-68650347. WhatsApp is +86-25-52155837. WeChat is +86 15365082610. Our website is flow-meter.com.au. Mention your compressed air system details in the first message. That saves one email back and forth.
FAQ
Question: Does a thermal mass flow meter work in wet compressed air?
Answer: Yes if the relative humidity stays below 100 percent. Liquid water droplets can cause reading spikes. Install a water separator upstream for best results.
Question: Can I install an insertion flow meter without shutting down the air line?
Answer: Yes. Use a hot tap ball valve assembly. The probe inserts through the valve while the line stays under pressure. This works on pipes DN80 and larger.
Question: What is the typical accuracy of a direct mass flow test?
Answer: A thermal mass flow meter from Silver Automation Instruments has plus minus 1.5 percent of reading plus 0.5 percent of full scale for air. Calibration at the factory uses NIST traceable references.
Question: Which pipe sizes need an inline meter instead of an insertion probe?
Answer: DN15 to DN50 lines often use inline thermal meters. Insertion probes work best from DN80 to DN300. For DN65 pipes, you can choose either type based on access.
Question: How do I convert scfm to kg/h for compressed air?
Answer: Scfm is a volumetric unit at standard conditions. Multiply scfm by 1.607 to get kg/h at 1.013 bar and 20 degrees C. But a direct mass flow meter gives kg/h without conversion.
