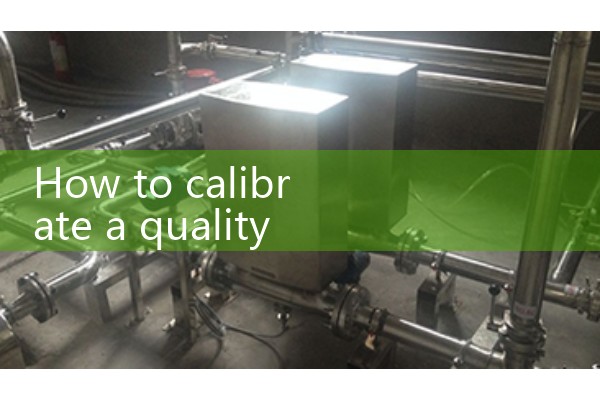

How to calibrate a quality flowmeter if the measured value is too small

『Calibration cost of quality flowmeter』Related information(clamp on meter|electromagnetic meter|venturi meterrotameter|orifice meter|ultrasonic flow meter|mass flow meter|coriolis mass flow meter|coriolis flow meter|magnetic flow meter|magmeter flow meter|magflow flow meter|mag meter flow meter|electromagnetic flow meter|vortex flow meter|turbine flow meter|thermal mass flow meter|thermal flow meter|rotameter flow meter)

1. How to calibrate thermal mass flow meters? The core methods for calibrating thermal mass flow meters are divided into three categories, which are suitable for different scenarios: real flow calibration method is accurate but costly, dry calibration method is convenient but slightly less accurate, and comparative calibration method requires serial standard equipment. 1. Real flow calibration method (accuracy priority field collapse scenario) uses actual fluid (such as gas) combined with a standard calibration device to compare the measured flow meter data with known flow values, and the error value directly reflects the calibration result. This method requires a laboratory level flow standard device, which is commonly used in measurement certification, high-precision industrial production, and other scenarios. However, the equipment investment and site requirements are high. Dry calibration method (rapid on-site detection) is based on the mathematical model of the sensor provided by the manufacturer, inputting parameters such as fluid type, temperature, pressure, etc., and simulating flow output through theoretical calculations. Suitable for daily maintenance or on-site testing without actual flow conditions, it is easy to operate and cost-effective, but relies on the accuracy of equipment factory parameters, and drift errors may occur after long-term use.
3. Comparative calibration method (series comparison verification) installs the flow meter to be calibrated in series with a certified standard flow meter, synchronously measures the flow data of the same pipeline, and compares the differences. This method is suitable for online calibration or environments with mature flow systems, but standard flow meters
must be regularly calibrated and the installation positions of the two meters must meet the requirements of flow stability. After understanding the logic of selecting calibration methods, it is necessary to confirm whether the fluid properties parameters (such as gas composition, viscosity), temperature and pressure range are consistent with the calibration conditions before operation, in order to avoid calibration failure due to differences in operating conditions.

2. How to calibrate EH mass flow meters with small measurement values

The core calibration method for EH mass flow meters with small measurement values is to first eliminate process and installation issues, and then perform zero calibration and K coefficient (instrument coefficient) adjustment through transmitters.

. 1. Pre calibration inspection and preparation: Before performing calibration operations, the following conditions must be confirmed, otherwise the calibration will be invalid or even damage the instrument: - Ensure that the fluid is completely filled in the measuring tube, and there are no bubbles or gas-liquid two-phase conditions inside the tube. -Check if the instrument installation meets the requirements and avoid excessive mechanical stress or pipeline vibration. -Confirm that the operating parameters such as fluid temperature, pressure, density, etc. are within the rated range of the instrument. -Prepare high-precision standards (such as electronic scales, standard volume tubes, etc.) as calibration references

2. Calibration steps: Taking the Yokogawa EJA series transmitter as an example, operate it through the BT200 handheld controller: • Zero Adjustment: Perform zero calibration while ensuring that the fluid is com

2. How to calibrate EH mass flow meters with small measurement values
